POWER PANELS :

• Power Control Centre Panel
• Motor Control Centre Panel
• Auto Mains Failure Panel
• Auto P. F. Control Panel
• Power/ Lighting Distribution Boards
• Extension Distribution Boards
• Feeder Pillar Panels
• Bus Duct & Bus Trunking

CONTROL/AUTOMATION Panels :

• Metering Panels
• MIMIC Panels

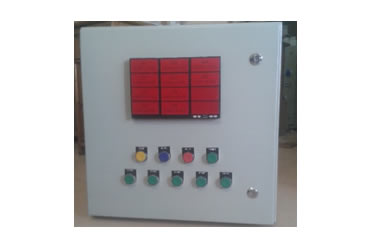

• Annunciator Panel
• Control Relay Panel
• Control Desk Panel

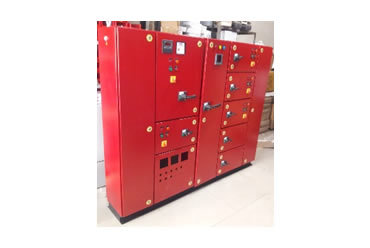

• Fire hydrant Pump Panel
• PLC Automation Panels
• Variable Frequency Drive Panel

SUB / FINAL Distribution Components :

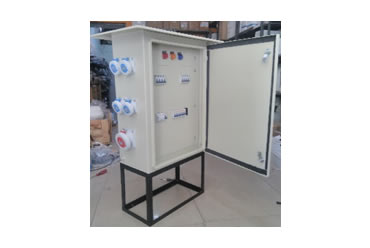

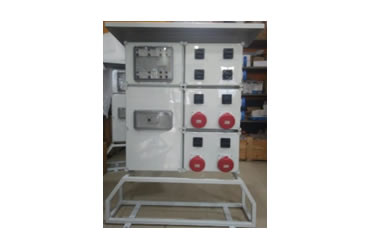

• Plugs Socket Outlet Boards
• Capacitor Bank Panels

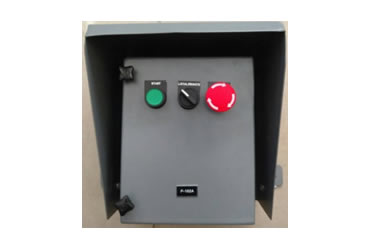

• Local Control Stations

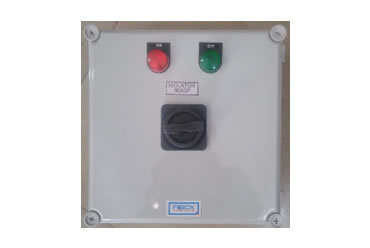

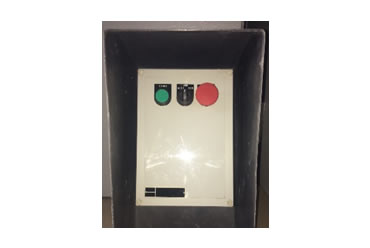

• Push Button Stations
• Busbar Junction Box
• MCCB / SFU Enclosures

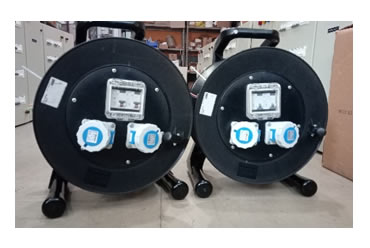

• Portable Extension Boards

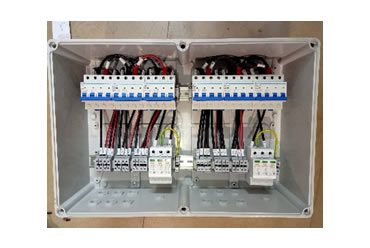

• SOLAR AC/DC DBs /Combiner Boxes

POWER PANELS :

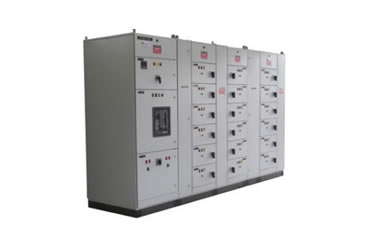

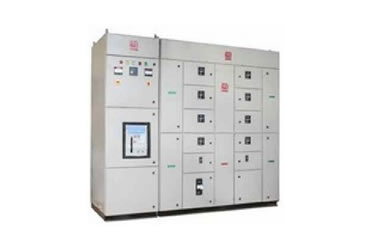

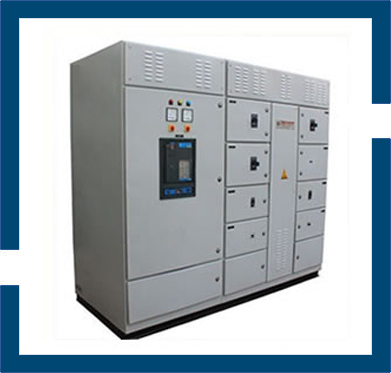

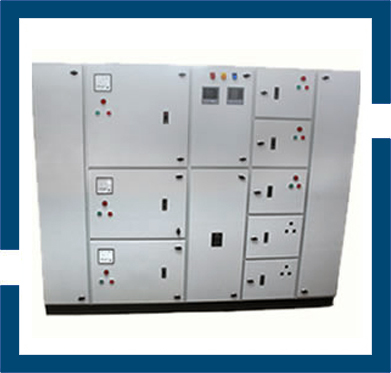

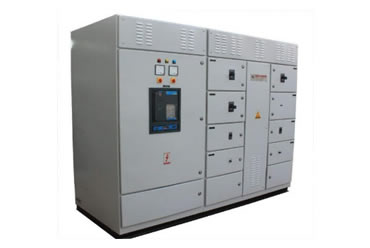

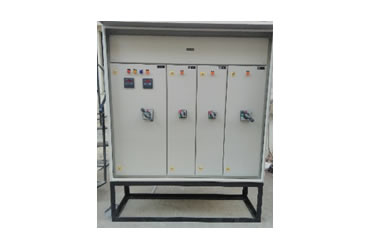

PCC- Power Control Centre is used for distribution and control of various power source used in industry. Normally Power Control Centers is installed near power source hence fault level is high. Busbar system in Power Control Centers are designed to suit the fault level as well as temperature rise to 40°c above ambient. Ample space is provided for cable termination. Various protections viz short circuit, overload, earth fault, under voltage etc are provided to protect source and equipment. Our aim with every controls package is to make the facility more versatile, productive and efficient, delivering both output and quality; we have a wealth of experience and use the latest technology to help you get the most from your system, by managing workloads and using performance data to greatest effect

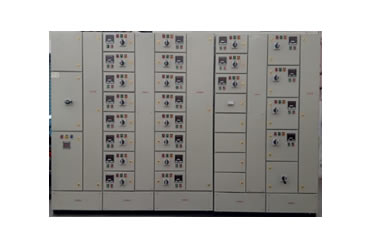

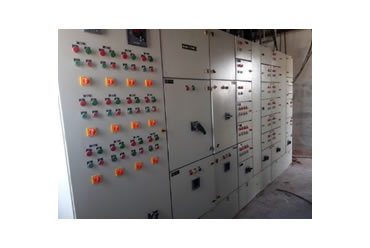

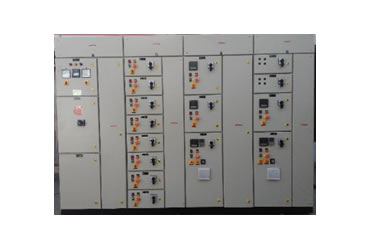

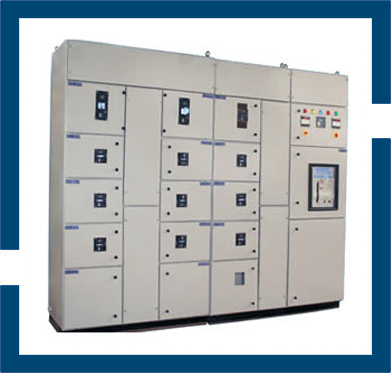

MCC – Motor control centre’s are generally used for power distribution for small/medium motor loads and is usually fed from a PCC for further transmission. In our MCC design the physical dimensions of each compartment can be varied in width, height and depth to accommodate the various space requirements for different starter types like- DOL / RDOL / Star-Delta / VFD/ Soft starters/auto transformer/ etc. In MCC panel feeders are with Local / Remote Operations as well DCS/ PLC operations. Motor Control Center is properly ventilated in case of higher size of motor starter

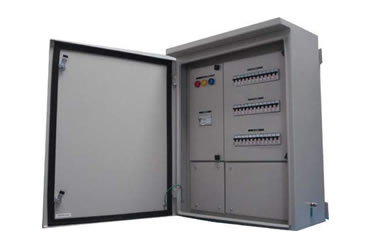

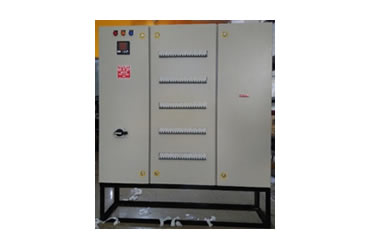

MDB- A Main distribution board which is fed from the transformer / PCC distribute the power to numerous individual circuits or SMDB/ LDB / PDB. This is totally customizes design of MDB make the system with high performance and maximum safety at reliability. A wide range of compact, elegant & economical DBs with unique features, designed & engineered to provide user safety, convenience and operational / maintenance advantages are offered. Main Distribution Panels are used for distribution of power on down streams. They are required in case of high concentration of loads other than motor starters. Advantage of using Power Distribution Panel is to clear fault locally hence it does not affect Upstream Switchgear

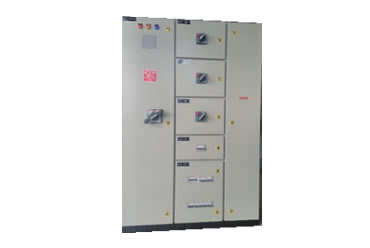

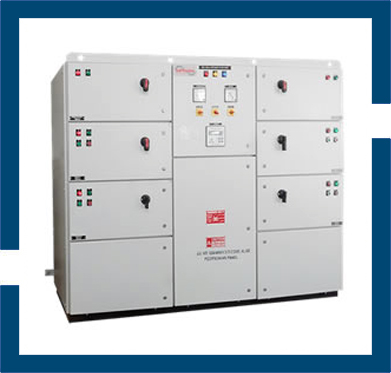

APFC PANEL-Automatic Power Factor Control or APFC Panels are mainly used for the improvement of Power Factor. Power Factor is the ratio of active power to apparent power and it is a major component in measuring electrical consumption. APFC is an automatic power factor control panel which is used to improve the power factor, whenever require.
